When the catalog doesn't have it, we engineer it.
A catalog ends where your part begins. NSIT engineers and sources the special and custom tooling that catalog houses send back — from a modified standard to a full made-to-print tool — with one goal: cutting your cost per part, cycle time, setup, and tool changes. Backed by our application specialists and premier partners like ARCH Cutting Tools and AB Tools.

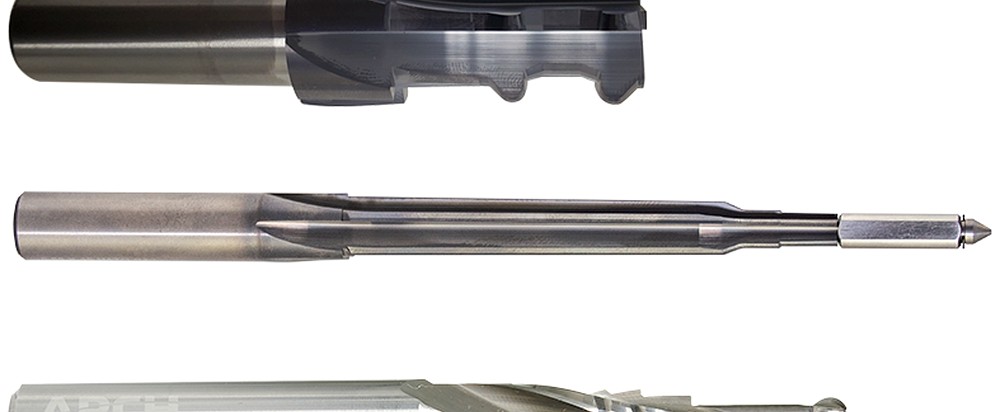

Made-to-print customs
Bring a print; we engineer the special through our partners — ARCH Cutting Tools, AB Tools, Mikron Tool and more — and prove it on your machine. Step drills, custom form tools, complex multi-feature round tools, special diameters, PCD and CBN — combined to take steps out of your process.

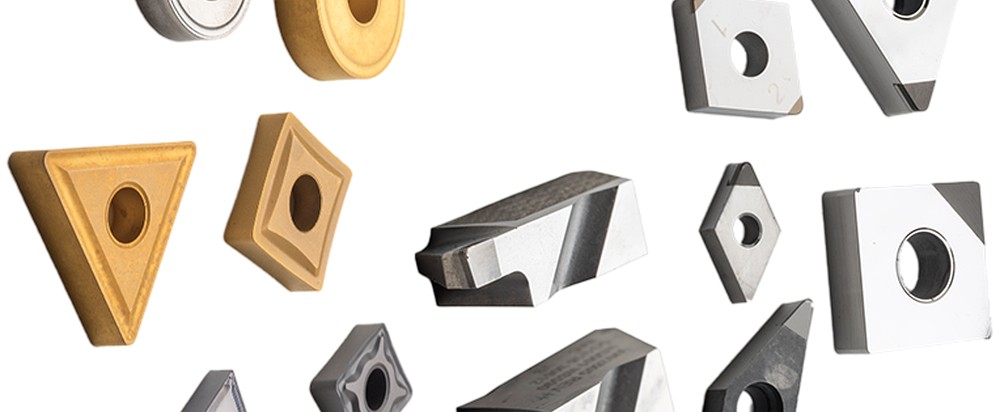

Modified & custom-ground standards
Often you don't need a clean-sheet special — just a standard tuned to your job: altered diameters, corner radii, necks, reach, and coatings. Faster and lower-cost than a full custom, ground to your feature.

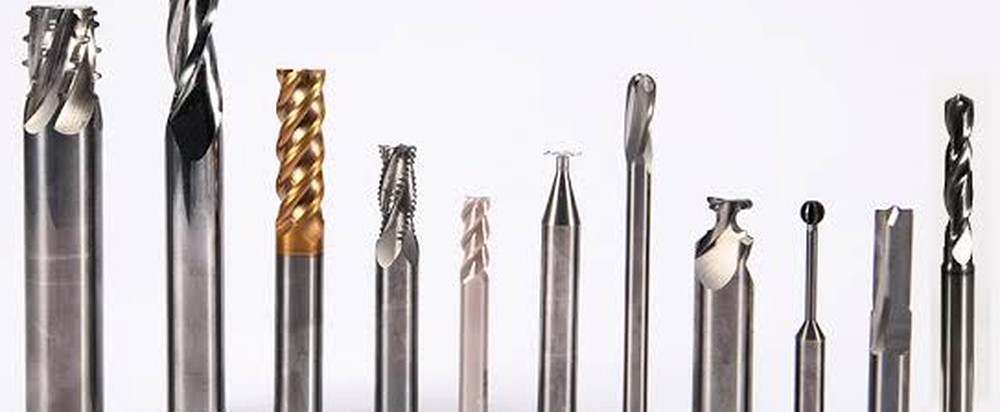

Custom NSHP end mills
Our private-label NSHP line goes beyond the 292 stock SKUs — custom solid-carbide end mills to your diameter, flute count, geometry, and coating. Engineered in the USA, precision-crafted in Poland, at NSHP pricing.

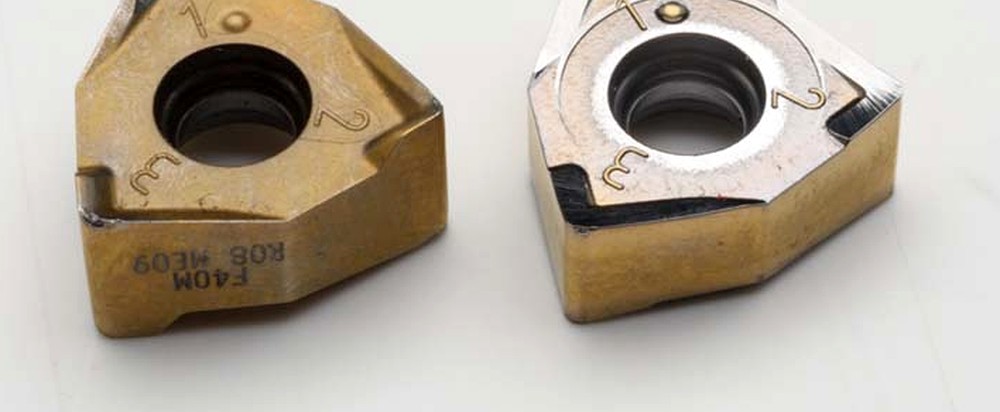

Used tooling → usable again
Don’t buy new steel to get a special. Worn inserts and round tools can be reground to spec — or downsized into a smaller standard size or a different form. Regrinds run about half the price of a new insert, in carbide, ceramic, cermet, PCD and CBN, held to new-tool tolerances. Ship us the used tooling; we sort it, quote what’s serviceable, and credit the rest.
See all six RECON360 services →
Line down? Quote in 4 hours. Tool in 5 days.
When a tool breaks and the job is on the clock, lead time is the problem. Through ARCH’s HOTSHOP! program we expedite most solid carbide round tools — quoted in four hours, manufactured and shipped in five days or less (ten for large quantities) — including custom features for chamfering, pre-drill prep, finishing, and corner contouring.
Does my tool qualify? — diameter & length limits
HOTSHOP! covers most solid carbide round tools within these maximum overall lengths. Outside the range? Send it anyway — we’ll quote it as a standard special.
| Dia. (in) | Max OAL |
|---|---|
| 1/8″ | 3″ |
| 3/16″ | 4″ |
| 1/4″ | 3″ |
| 5/16″ | 4″ |
| 3/8″ | 6″ |
| 7/16″ | 6″ |
| 1/2″ | 6″ |
| 9/16″ | 6″ |
| 5/8″ | 6″ |
| 3/4″ | 8″ |
| 7/8″ | 6″ |
| 1″ | 8″ |
| 1-1/4″ | 8″ |
| Dia. (mm) | Max OAL |
|---|---|
| 3 | 38 |
| 4 | 76 |
| 5 | 50 |
| 6 | 100 |
| 7 | 63 |
| 8 | 65 |
| 9 | 65 |
| 10 | 150 |
| 12 | 120 |
| 13 | 110 |
| 14 | 110 |
| 15 | 110 |
| 16 | 92 |
| 17 | 110 |
| 18 | 93 |
| 19 | 110 |
| 20 | 104 |
| 25 | 105 |
Have a print or a problem tool?
