Machine more sides in one clamping

Every time a part comes out of the vise to be flipped, you pay for a second setup, a second indicate and a second chance to stack tolerance. A rotary table or tilting trunnion puts those sides in reach of the spindle in one clamping. Samchully has built NC rotary tables alongside its chucks since 1975 — 4th-axis tables, tilting 5th-axis tables, multi-spindle units and tailstocks — and we help you size the right one for the machine and the part. We install them in the machines you already run, and quote them with any machine we sell.

Which rotary fits the job?

Three questions. The answer is a starting point for sizing — table diameter, through-hole and servo motor are confirmed against your machine and control before you order.

How many axes are you adding?
What goes on the table?
Can your control drive the extra axis today?
Start with
S series

    See the Samchully series ↗

    The Samchully rotary line

    Samchully offers its tables with Fanuc servo motors, so the rotary can be matched to the control on the machine. Where the control has no spare axis, a Samchully Neo-Con controller runs the table on its own.

    Samchully S-200F4 4th-axis NC rotary tableS-200F4
    4th axis

    S series NC rotary tables

    Samchully’s standard 4th-axis table: high-speed, high-precision indexing, a compact and very rigid body, and a pneumatic clamp. It runs mounted vertically or horizontally. Eleven models from Ø124 to Ø310 mm; the L models carry the same specifications as the standard model of each size.

    4 arc-sec repeatabilityPneumatic clampVertical or horizontal
    S series specifications (Samchully published data)
    ModelTable Ø (mm)Center height (mm)Through-hole (mm)Clamp torque (N·m)Indexing / repeat (arc-sec)Weight (kg)Fanuc servo
    S-120F2Ø1244.88″120Ø3015030 / 43577 lbαiF2
    S-170F2 · LF2Ø1756.89″140Ø4038020 / 452115 lbαiF2
    S-200F4 · LF4Ø2007.87″170Ø4548020 / 479174 lbαiF4
    S-250F4 · LF4Ø2409.45″185Ø7075020 / 4100220 lbαiF4
    S-250F8 · LF8Ø2409.45″185Ø7075020 / 4105231 lbαiF8
    S-320F8 · LF8Ø31012.20″225Ø1051,44020 / 4175386 lbαiF8
    S series ↗

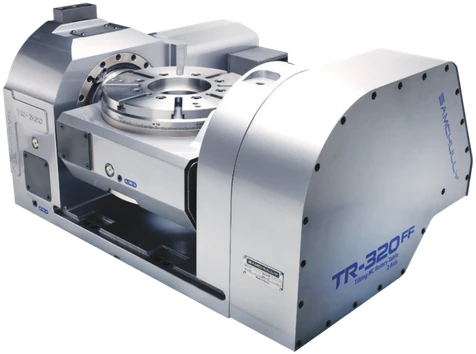

    Samchully TR-320FF tilting 4th and 5th-axis NC rotary table
    TR-320FF

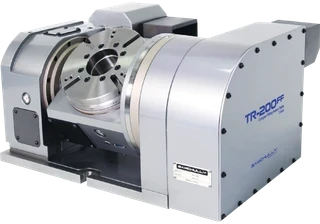

    Samchully TR-200FF tilting NC rotary table
    TR-200FF
    4th & 5th axis · tilting

    TR series tilting trunnions

    A compact tilting table that bolts to a 3-axis VMC and adds tilt and rotation — five sides in one clamping without buying a 5-axis machine. High-speed, high-precision indexing, a rigid body, and hydraulic clamping on both axes, with a Fanuc servo on each. Four sizes from Ø130 to Ø310 mm.

    Hydraulic clampUp to 2,600 N·m4 arc-sec repeatability
    TR series specifications (Samchully published data)
    ModelTable Ø (mm)Center height (mm)Through-hole (mm)Clamp torque rotate / tilt (N·m)Indexing rotate / tilt (arc-sec)Weight (kg)Fanuc servos rotate / tilt
    TR-120FFØ1305.12″150Ø32200 / 30040 / 60120265 lbαiF2 / αiF2
    TR-200FFØ2007.87″180Ø45450 / 80030 / 60250551 lbαiF4 / αiF4
    TR-250FFØ2409.45″225Ø70900 / 1,20030 / 60295650 lbαiF4 / αiF4
    TR-320FFØ31012.20″242Ø1052,300 / 2,60030 / 60410904 lbαiF8 / αiF12

    Repeatability is 4 arc-sec on both axes, except 8 arc-sec on the TR-320FF tilt axis.

    TR series ↗All 5th-axis tables ↗

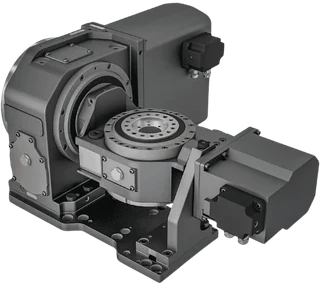

    Samchully TM-184FF compact tilting 5-axis NC rotary table
    TM-184FF

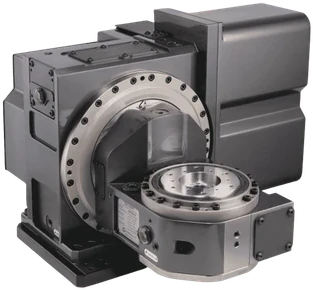

    Samchully TM-132FF compact tilting 5-axis NC rotary table
    TM-132FF
    5 axis · compact tilting

    TM series compact trunnions

    Samchully’s compact tilting series. The TM-132FF, Samchully’s newest, is designed for compact tapping centers and dual-pallet machining centers, and clamps pneumatically. The TM-184FF runs a roller gear cam on the tilt axis for zero backlash, with a hydraulic clamp and a rigid body.

    Zero backlash (TM-184FF)Tapping centersDual-pallet VMCs
    TM series specifications (Samchully published data)
    ModelTable Ø (mm)Center height (mm)Through-hole (mm)Clamp torque rotate / tilt (N·m)Indexing rotate / tilt (arc-sec)Weight (kg)Fanuc servos rotate / tilt
    TM-132FFØ1134.45″163Ø46130 / 480—135298 lbαiS2 / αiF4
    TM-184FFØ1706.69″211Ø46310 / 80030 / 40162.5358 lbαiS2 / αiF4

    Samchully has not published indexing accuracy for the TM-132FF. TM-184FF repeatability is 4 arc-sec rotating and 6 arc-sec tilting.

    TM-184FF drawings & 3D ↗TM-132FF drawings & 3D ↗
    Samchully · TM series Samchully TM series compact tilting rotary table video

    Also in the Samchully rotary line

    Large-bore & hydraulic clamp
    For heavy work, big chucks and bar through the table. Hydraulic clamping and large center bores — the biggest Samchully tables pass 372 mm through the spindle with 4,000 N·m of clamp torque.
    Large boreHydraulic clampHRS series
    Multi-spindle · MS & MTR
    Two or more spindles driven together, so several parts are cut every cycle. MS series for 4th-axis work; MTR series adds the tilt for multi-part 5-axis work.
    MSMTRParts per cycle
    Tailstocks & trunnion setups
    Manual and hydraulic/pneumatic tailstocks and air-clamp tail spindles to support the far end of long parts — or a trunnion plate spanning the rotary and tailstock with fixtures on every face.
    TSTS-AHTail spindles
    Neo-Con controllers & indexers
    No 4th-axis option on the control? A stand-alone indexer with its own Neo-Con controller is triggered by M-code or RS-232 from the machine, so older and simpler VMCs can still index parts.
    Neo-ConM-codeRS-232
    Samchully rotary tables ↗ 4th-axis tables ↗ 5th-axis tilting tables ↗ Catalogs & manuals ↗
    Machines · Lights Out Machinery
    Adding a rotary, or buying the machine?

    We install rotaries and trunnions in the machines you already run. When the part mix calls for a new machine, Lights Out Machinery & Automation, the machinery side of our team, quotes the rotary or trunnion with any machine it sells — the 3-axis GEN MILLs ship with 4th and 5th-axis wiring fitted from the factory, so adding a rotary is a plug-in rather than a retrofit.

    Rotaries on LOMA →
    GEN MILL 5X-12 five-axis vertical machining center with 12 inch trunnion

    Holding the part on the rotary is its own job. See workholding for HWR zero-point and 5-axis vises, and Samchully power chucks for the lathe side.
